Turbocharger Accessories

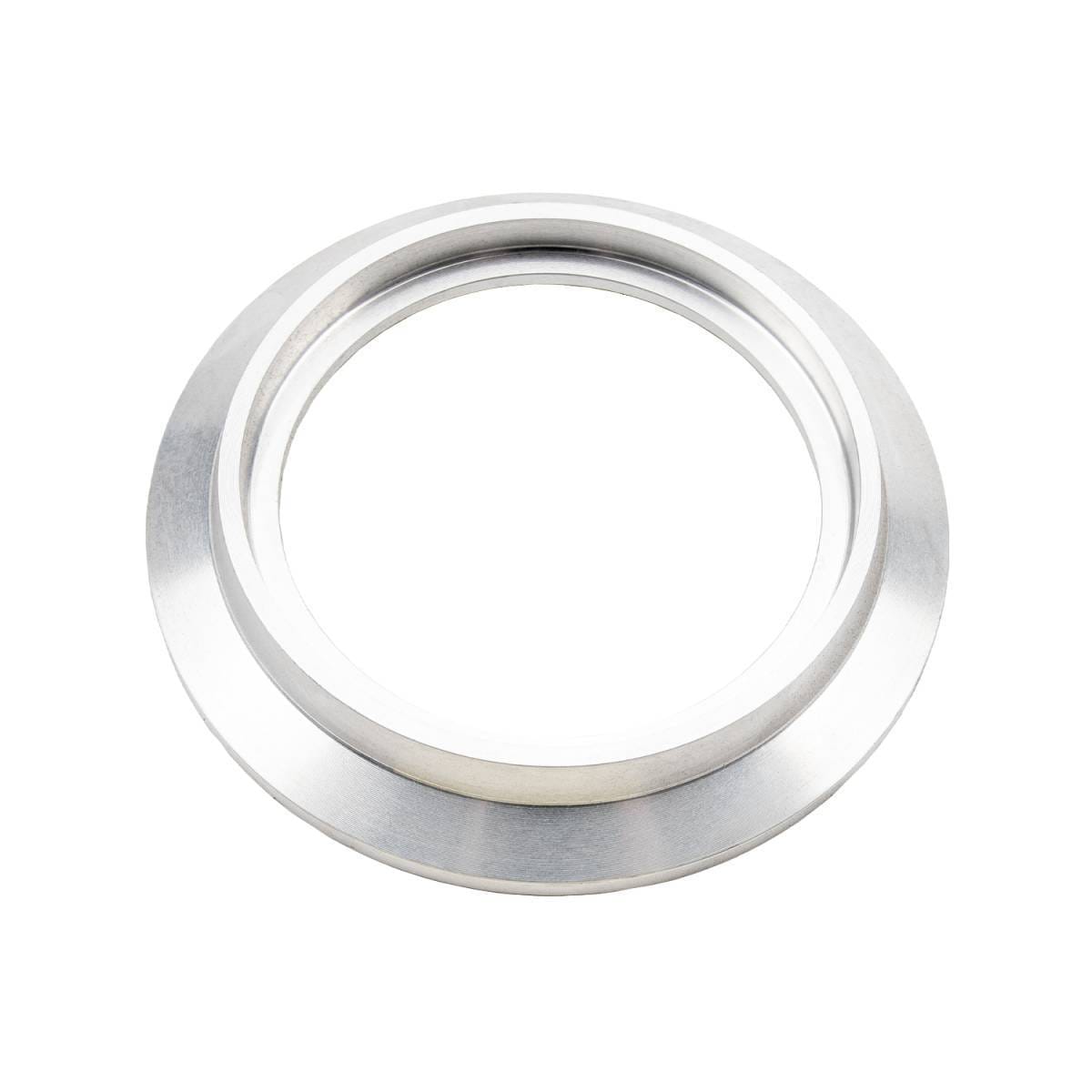

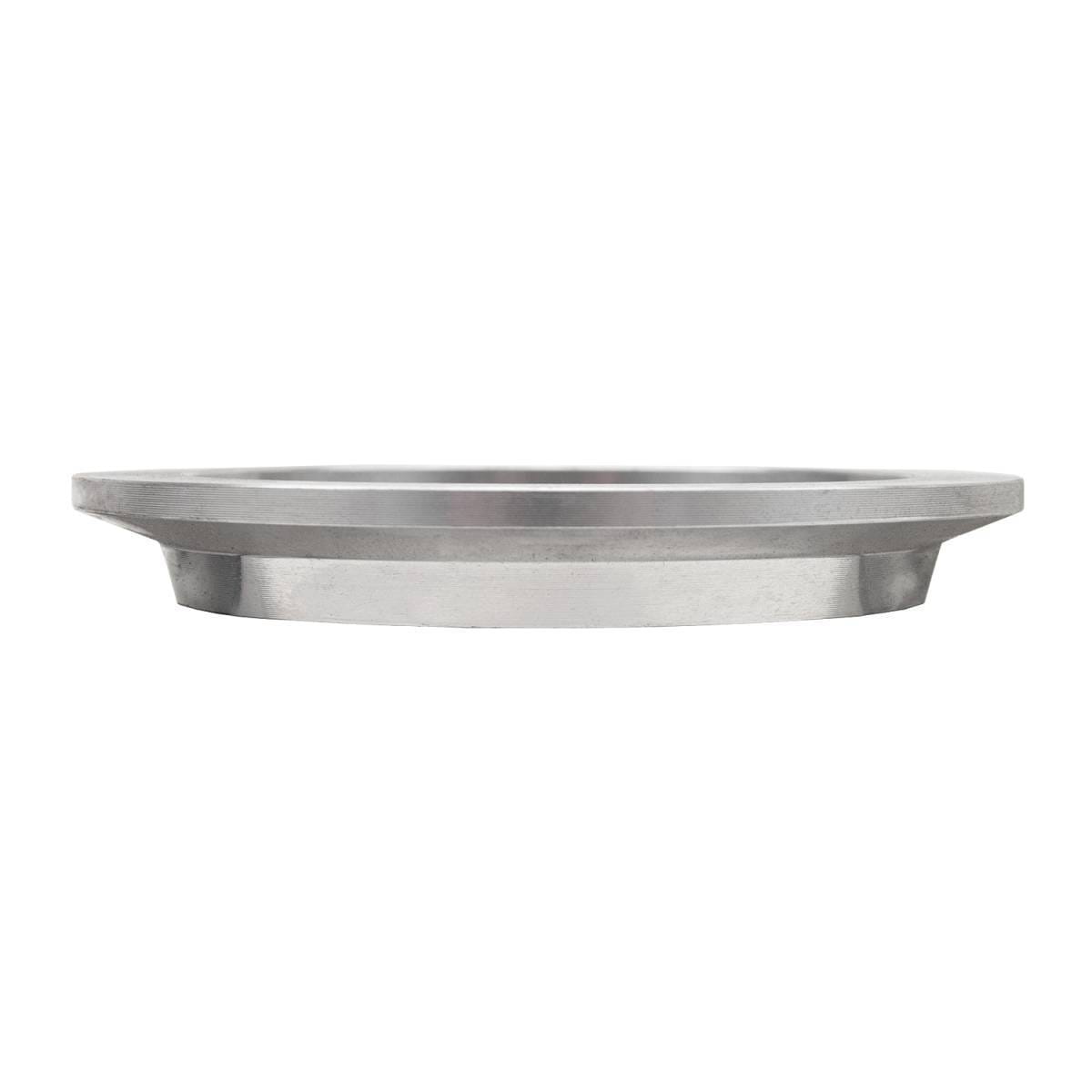

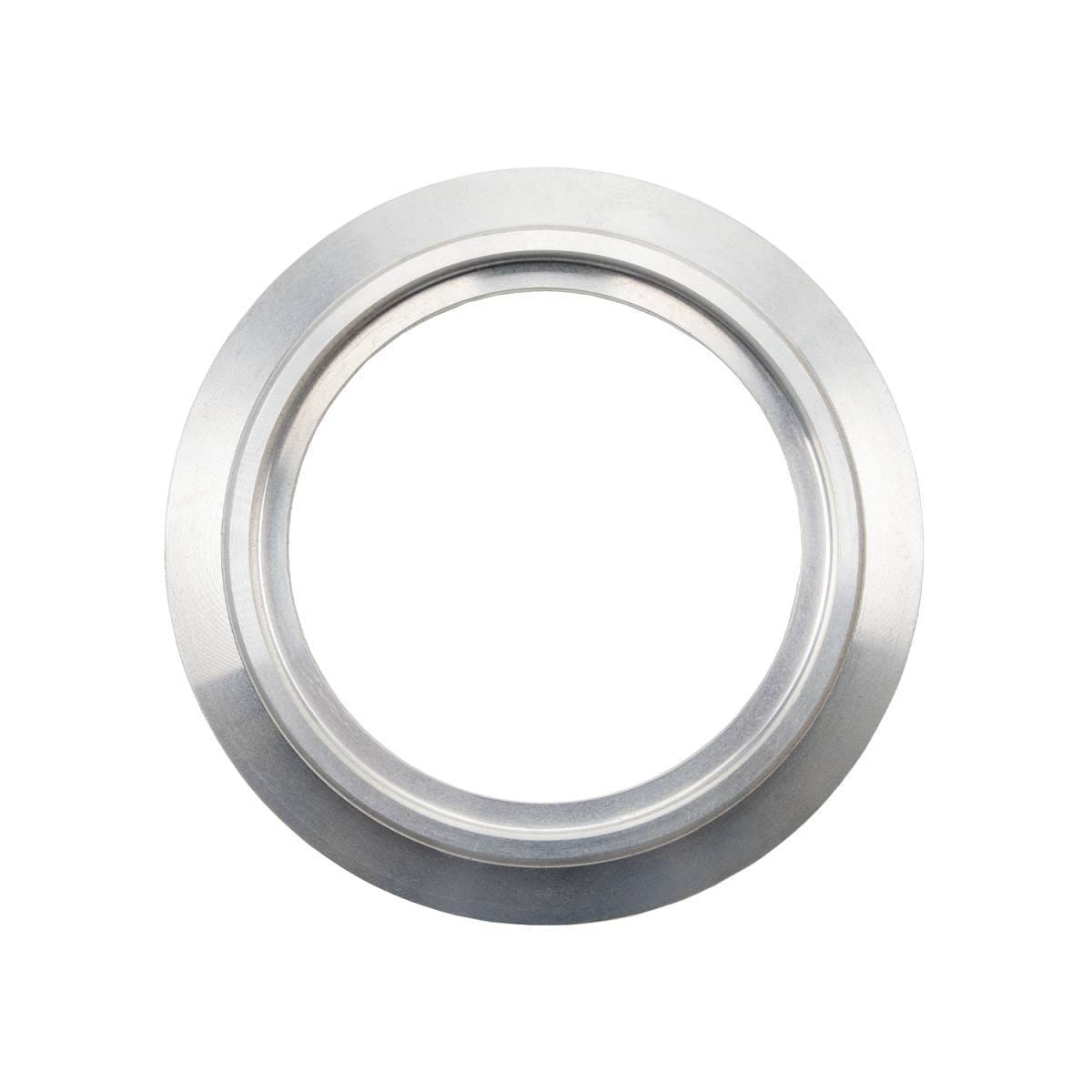

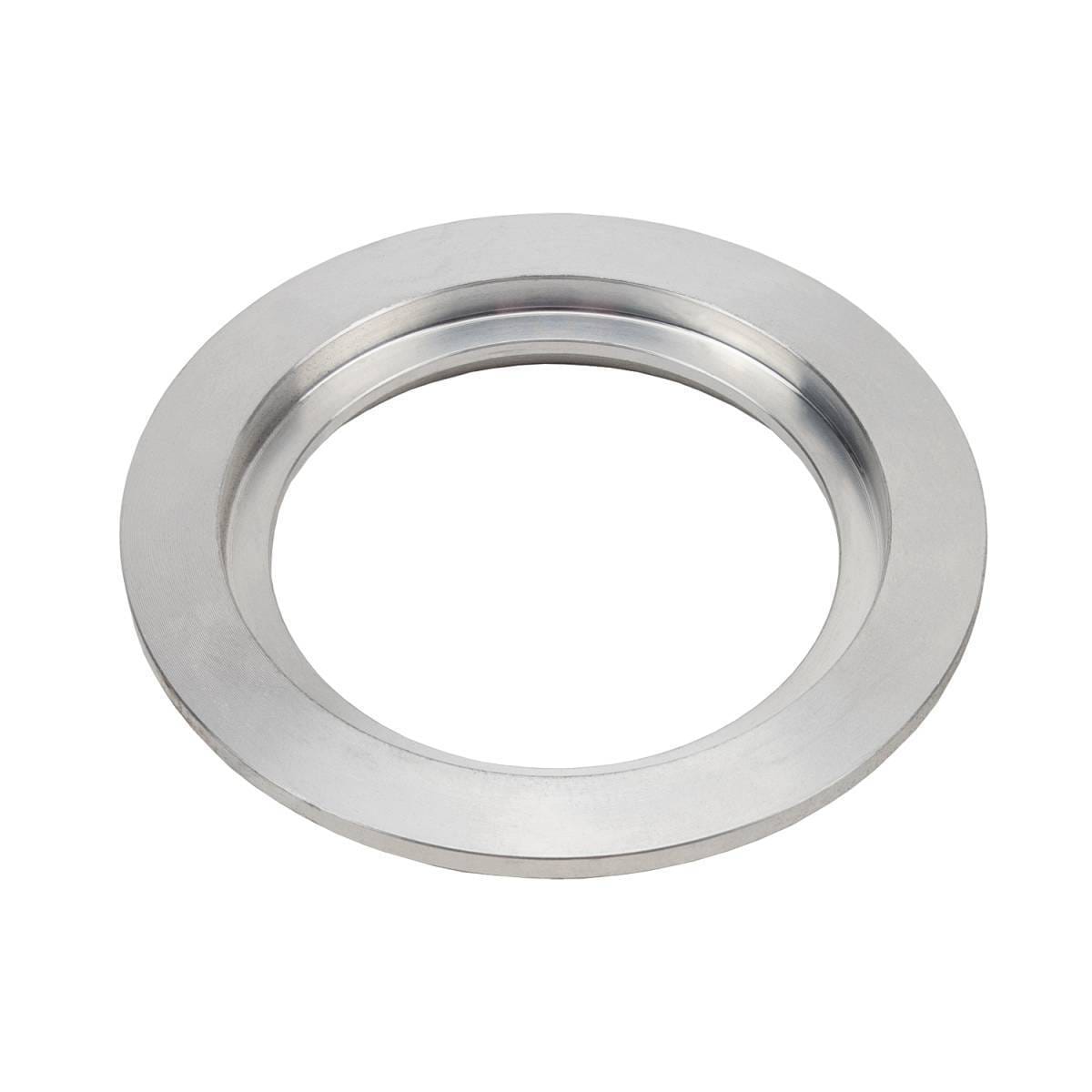

Wehrli S400SXE / Race Cover Turbo Weld On Compressor Outlet V-Band Flange

SKU: wcfWCF205-69

$40.00
1
Description

- Compressor Outlet V-Band Flange for Borg Warner S400-SXE Style Turbochargers - Mating Flange, Clamp, and O-Ring Seal Sold Separately - Requires cutting or machining off the hose outlet on an S400 SXE style turbo - CNC Machined from Billet Aluminum - Made in USA This S400 SXE / Race Cover Turbo Weld On Billet Aluminum Compressor Outlet V-Band Flange is CNC machined from 6061-T6 Aluminum in DeKalb, IL USA. Allows DIY fabricators to modify the compressor outlet of a Borg Warner S400-SXE style turbocharger to accept a v-band connection for custom intercooler plumbing rather than the conventional hose outlet. Requires cutting or machining off the hose outlet of your S400SXE to weld on this component. Intercooler pipe mating flange, clamp, and o-ring seal sold separately. See items: WCF203-21, WCF203-40, WCF205-66, WCF205-65, and WCF205-68.

Specifications
Category
Turbocharger Accessories
length
4.0000
height
5.0000
width
4.0000
